Original Sinclair QL related hardware.

Manufacturer: Di-Ren.

Item Name: QL Keyboard Interface.

Estimated Rarity (1 - 10): 7

Related Software: None.

Notes: The standard QL keyboard was fine for casual use, but for actual typing or professional use it wasn't great, to say the least! One solution was the Di-Ren keyboard interface, which enabled the attachment of a standard and readily available IBM PC AT keyboard. The device plugs into the socket of the 8049 chip and the original 8049 chip plugs into the Di-Ren device. On the other end of the cable is a standard DIN 5-pin female socket for plugging in the external keyboard.

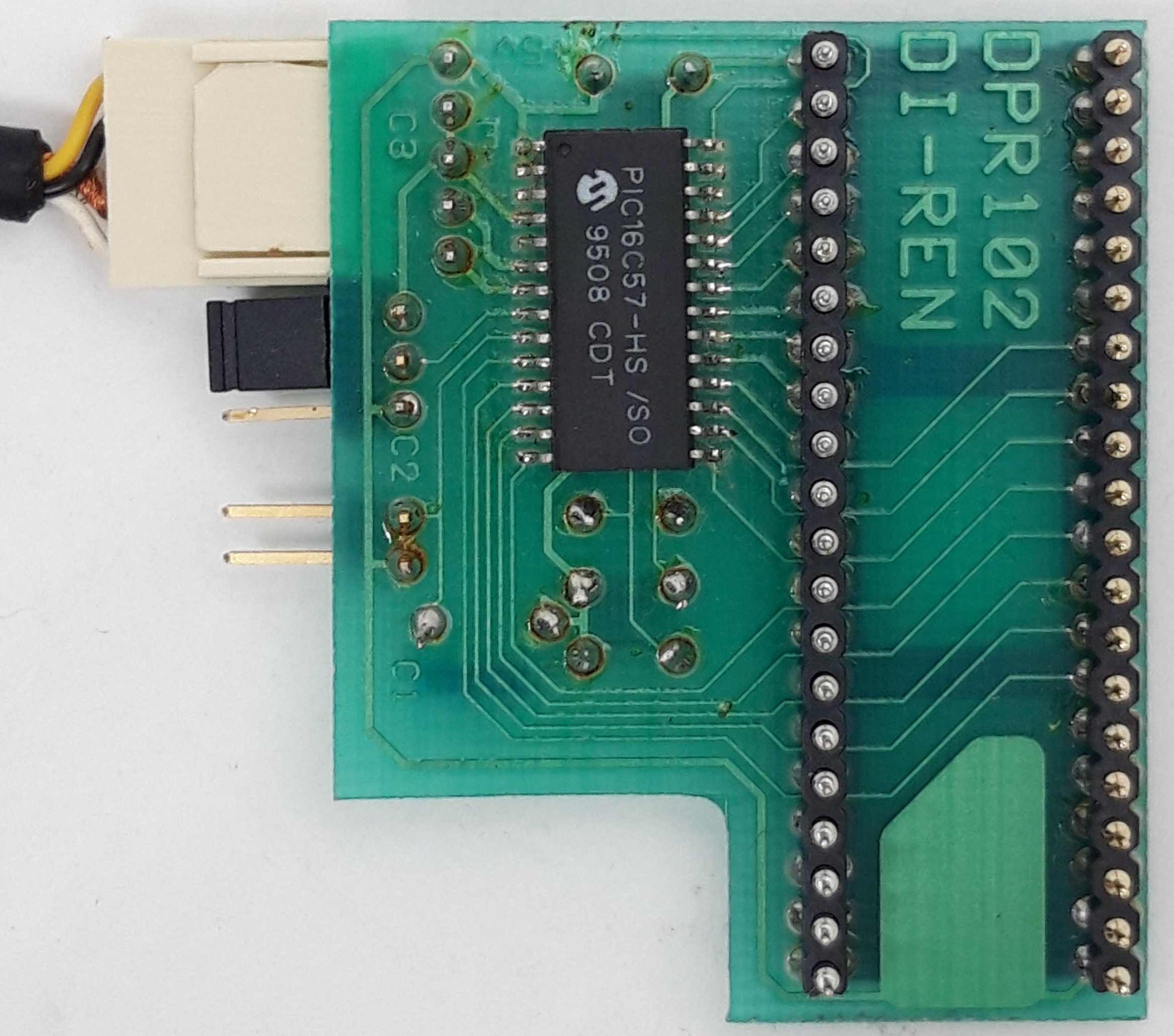

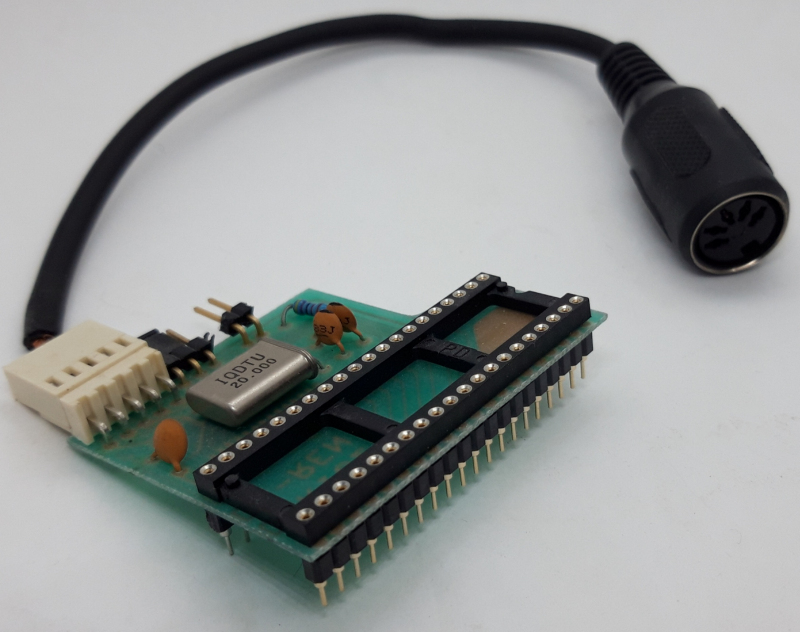

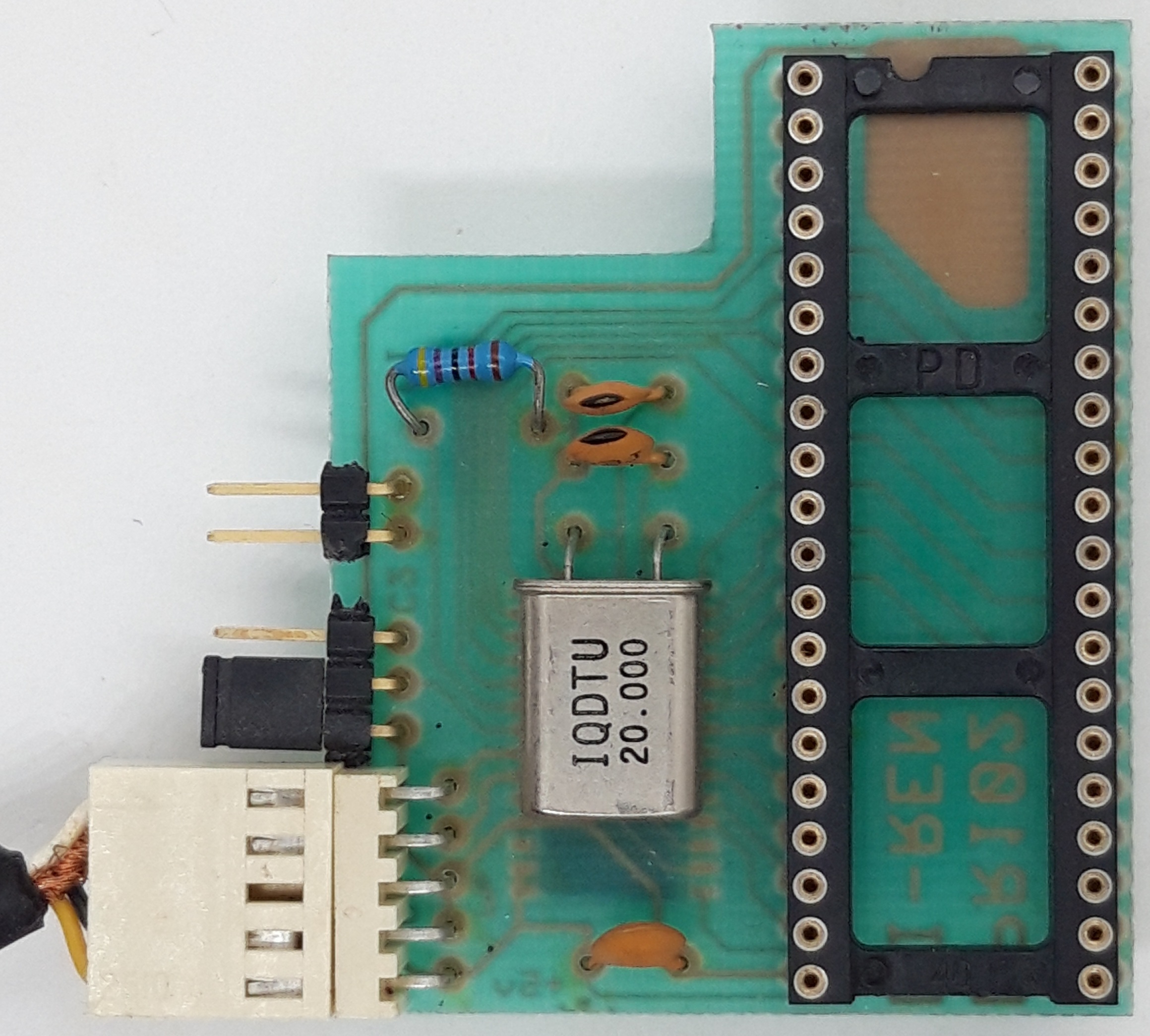

Hardware images:

Screenshot(s):

Not relevant.

Page on QL Wiki: https://wiki.qlforum.co.uk/doku.php?id=qlwiki:keyboards#diren_keyboard_interface
